GR-6M 便攜式臭味及毒性氣體監測裝置
特點
即時臭氣指數顯示
可選配最多 8 種氣體現場監測
可執行長時間連續監測

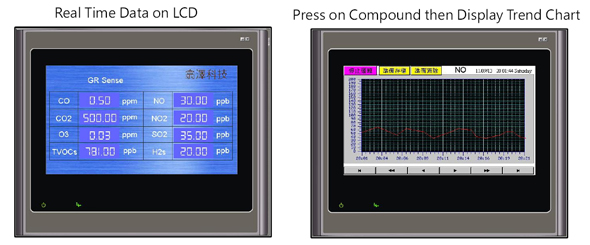

LCD 即時顯示濃度值及趨勢圖
資料可儲存於 miniSD card
電子式幫浦控制,穩定的進氣量確保數據品質
應用
空氣汙染狀況監測
工作場所勞工安全衛生確保
工業區汙染洩漏狀況緊急應變
GR-6M Specification

1. Principle:
- Dynamic Gas sampling method with multi sensor cell

2. Compounds and Ranges:

Compound LDL Range Resolution
TVOCs 0.1ppm 0 -50 ppm 0.1 ppm
Odor   0-10000 odor index
O3 3 ppb 0 – 1 ppm < 3 ppb
CO2 1 ppm 0 -5000 ppm 1 ppm
NO 5 ppb 0 – 20ppm < 5 ppb
NO2 5 ppb 0 – 20ppm < 5 ppb
SO2 3 ppb 0 – 20ppm < 3 ppb


3. Sensor life time:
- > 2 years

4. Display Monitor:
- 4.3" TFT LCD
- Current concentration
- Display trend chart by compound

5. Data Storage:
- SD card or CF card

6. Output:
- USB port

7. Enclosure material:
- Steel

8. Size and Weight:
- 200 mm (W) 170mm (H) 100mm (D) 2.5 Kg

9. Power Supply:
- 24 VDC or Built in Lithium battery
